HOSTING TELEPHONY RECORDINGS IN THE CLOUD
Empowering technology for Hosted Recording systems
The OptiLogix HyperCloud "Telephony Recording in the Cloud" devices provide powerful features for creating
advanced cloud based Call Recording services.
These fully stand-alone devices will locally record all analog, digital PBX extensions, BRI, PRI, T1 or VoIP (SIP)
telephone calls and buffer them internally (and optionally compress them) before uploading to your cloud services.
No need for a local PC, storage or software !
We proudly present our products:
We offer the broadest range of voice recording hardware interfaces in the industry. These interfaces not only interface
to a wide range of Analog, TDM and VoIP infrastructures, but also interface in many different ways to recording
servers using USB, PCI (Express) or Ethernet.
Order now or learn more about our products:
Full range of Telecom interfaces for Call Recording systems

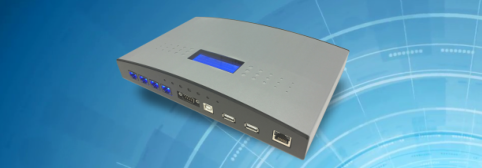

Compact box with telecoms interfaces, 10/100 Mbit/s
Ethernet port and LCD display
Non intrusive and undetectable high impedance passive
monitoring
Dialled number and Caller ID signalling support
Models available for PRI-ISDN, BRI-ISDN / So bus, Digital
handsets and Analog handset / trunk lines
Analog models support DTMF, FSK Caller ID, AGC and audio
detection
Digital models support all major PBX with highly accurate
DigitalVox start / stop triggering
Web interface for system configuration, firmware uploading
and channel capacity license upgrading
Fully stand-alone embedded (Linux) operation with internal
RAM and (expandable) SSD storage for audio file buffering
Supports 64kbit/s A-law, 16kbit/s MP3, 13kbit/s GSM and
8kbit/s MP3 high quality audio encoding for reduced IP
bandwidth cloud streaming
Optional highly secure encrypted audio files
FTP and Secure FTP for streaming audio files and meta-data
to the cloud
CE, FCC and RoHS 3 compliance
FEATURES & BENEFITS
HYPERCLOUD
HYPERCLOUD.SIP

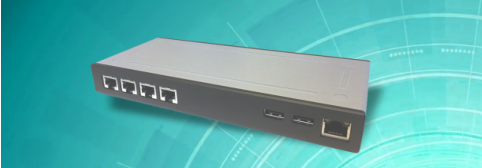

Compact box with passive Ethernet mirroring tap and 10/100
Mbit/s Ethernet port
Non intrusive and undetectable passive LAN monitoring
SIP trunk and SIP extension recording with optional DTMF
detection, DTMF controlled pause/resume and flat-toning
Optional support for real-time G.722 and G.729 decoding
Web interface for system configuration, firmware uploading
and channel capacity license upgrading
Fully stand-alone embedded (Linux) operation with internal
RAM and (expandable) SSD storage for audio file buffering
Supports 64kbit/s A-law, 16kbit/s MP3, 13kbit/s GSM and
8kbit/s MP3 high quality audio encoding for reduced IP
bandwidth cloud streaming
Optional highly secure encrypted audio files
FTP and Secure FTP for streaming audio files and meta-data
to the cloud
CE, FCC and RoHS 3 compliance
FEATURES & BENEFITS
Voice to Cloud Streamers for Analog, Digital, BRI and
PRI-ISDN
Stand-alone embedded ARM based Linux system with
DSP technology.
Full D-channel signalling support for all major ISDN variants,
Q.SIG, DASS-2 and DPNSS.
Analog versions available with full DTMF, FSK Caller ID,
AGC and VOX support
Voice to Cloud Streamers for SIP trunks and extensions
Stand-alone embedded ARM based Linux system with
dedicated network co-processor for packet filtering and
RTP audio stream decoding (including G.722 and G.729).
Integrated non intrusive passive Ethernet mirroring tap ensures
full transparancy in case of power down of the unit and
removes the need for managed switches to do port mirroring
in order to capture SIP and RTP traffic.
